Team 76_75: Ramya Gandhi, Lorena, Tim Khuu, D Rod

Published May 12, 2023

SE423 Final Project

lean, mean, golf-ball-collecting, obstacle-avoiding, a*-path-planning, machine!

IntermediateShowcase (no instructions)14

Things used in this project

Software apps and online services

Texas Instruments Code Composer Studio

Microsoft Visual Studio Code Extension for Arduino

LabVIEW Community Edition

Story

This robot can collect golf balls, avoid obstacles, and navigate to 5 different (x, y) waypoints in a prescribed order. It can also distinguish colors, so it knows to pick up only orange and purple golf balls. It expects 5 balls, and once that number has been reached, it sends itself to a deposit location outside of the course depending on the color of the golf balls.

strategy

The team aimed to use everyone's strengths to optimize the completion of the project. The strategy implemented was "slow and steady wins the race."The velocity was kept at vref = 0.2 tiles/second.

LiDAR is used for obstacle detection, which maps out the course as the robot traverses it, and improves the functionality of the A* algorithm implemented. To find golf balls and their colors, the camera senses the LAB values for each color and the robot detects a maximum area threshold for each color which would set off the ball collection routine, in which a servo motor opens the robot's "mouth" and another moves "tongue" which is used to separate the golf balls by color.

Further, the motion capture facilities in the laboratory help to communicate the distance of the robot and the balls relative to the course, and ensure there is no bias from the robot's own camera perception.

pictures/videos

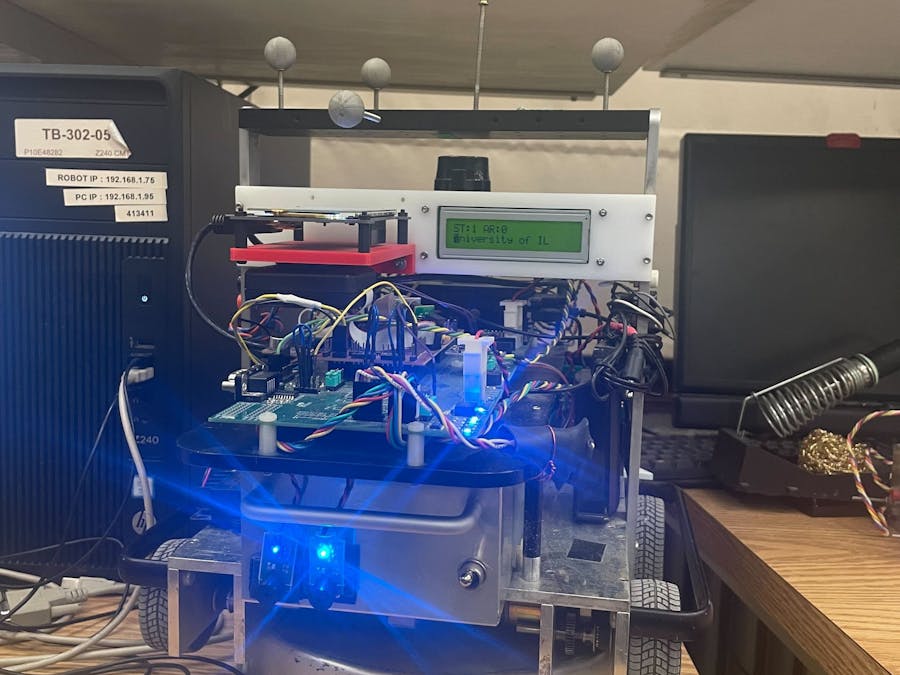

Robot in the course

LABVIEW & A* Path Planning

team

David Rodriguez

Adam Spitzner

Tim Khuu

Lorena Escamilla

Ramya Gandhi

 /*
     ____________________________________________________
    |                                                   |
    |                                                   |
    |                                                   |
    |                                                   |
    |                    |            |                 |
    |                    |            |                 |
    |                    |            |                 |
    |                    |            |                 |
    |                    |____________|                 |
    |                                                   |
    |                                                   |
    |                                                   |
    |                                                   |
    |                                                   |
    |____________________     y       __________________|
                              ^
                              |
                              |
                              |------> x
                              (0,0) Theta Right hand rule
*/

#include <stdio.h>
#include <stdlib.h>
#include <stdarg.h>
#include <string.h>
#include <math.h>
#include <limits.h>
#include "F28x_Project.h"
#include "F2837xD_SWPrioritizedIsrLevels.h"
#include "driverlib.h"
#include "device.h"
#include "xy.h"


#define PI          3.1415926535897932384626433832795
#define HALFPI PI/2.0

float my_atanf(float dy, float dx)
{
	float ang;

	if (fabsf(dy) <= 0.001F) {
		if (dx >= 0.0F) {
			ang = 0.0F;
		} else {
			ang = PI;
		}
	} else if (fabsf(dx) <= 0.001F) {
		if (dy > 0.0F) {
			ang = HALFPI;
		} else {
			ang = -HALFPI;
		}
	} else {
		ang = atan2f(dy,dx);
	}
	return ang;
}

int16_t xy_control(float *vref_forxy, float *turn_forxy,float turn_thres, float x_pos,float y_pos,float x_desired,float y_desired,float thetaabs,float target_radius,float target_radius_near)
{
	float dx,dy,alpha;
	float dist = 0.0F;
	float dir;
	float theta;
	int16_t target_near = 0;
    float turnerror = 0;

		// calculate theta (current heading) between -PI and PI
	if (thetaabs > PI) {
		theta = thetaabs - 2.0*PI*floorf((thetaabs+PI)/(2.0*PI));
	} else if (thetaabs < -PI) {
		theta = thetaabs - 2.0*PI*ceilf((thetaabs-PI)/(2.0*PI));
	} else {
		theta = thetaabs;
	}

	dx = x_desired - x_pos;
	dy = y_desired - y_pos;
	dist = sqrtf( dx*dx + dy*dy );
	dir = 1.2F;

	// calculate alpha (trajectory angle) between -PI and PI
	alpha = my_atanf(dy,dx);

	// calculate turn error
	turnerror = theta - alpha;

	// check for shortest path
	if (fabsf(turnerror + 2.0*PI) < fabsf(turnerror)) turnerror += 2.0*PI;
	else if (fabsf(turnerror - 2.0*PI) < fabsf(turnerror)) turnerror -= 2.0*PI;

	if (dist < target_radius_near) {
		target_near = 1;
		// Arrived to the target's (X,Y)
		if (dist < target_radius) {
			dir = 0.0F;
			turnerror = 0.0F;
		} else {
			// if we overshot target, we must change direction. This can cause the robot to bounce back and forth when remaining at a point.
			if (fabsf(turnerror) > HALFPI) {
				dir = -dir;
			}
			turnerror = 0;
		}
	} else {
		target_near = 0;
	}

	// vref is 1 tile/sec; but slower when close to target.
	*vref_forxy = dir;//*MIN(dist,1);  /////////////////////////////PROJECT DAY --- JUST dir

    if (fabsf(*vref_forxy) > 0.0) {
        // if robot 1 tile away from target use a scaled KP value.
        *turn_forxy = (*vref_forxy*2)*turnerror;
    } else {
        // normally use a Kp gain of 2
        *turn_forxy = 2*turnerror;
    }

    // This helps with unbalanced wheel slipping.  If turn value greater than turn_thres (I use 2) then just spin in place
	if (fabsf(*turn_forxy) > turn_thres) {
		*vref_forxy = 0;
	}
	return(target_near);
}

//#############################################################################
// FILE:   AstarProjectStarter_main.c
//
// TITLE:  Astar Starter
//#############################################################################

// Included Files
#include <stdio.h>
#include <stdlib.h>
#include <stdarg.h>
#include <string.h>
#include <math.h>
#include <limits.h>
#include "F28x_Project.h"
#include "F2837xD_SWPrioritizedIsrLevels.h"
#include "driverlib.h"
#include "device.h"
#include "F28379dSerial.h"
#include "song.h"
#include "dsp.h"
#include "fpu32/fpu_rfft.h"
#include "xy.h"
#include "MatrixMath.h"
#include "SE423Lib.h"
#include "OptiTrack.h"

#define PI          3.1415926535897932384626433832795
#define TWOPI       6.283185307179586476925286766559
#define HALFPI      1.5707963267948966192313216916398
// The Launchpad's CPU Frequency set to 200 you should not change this value
#define LAUNCHPAD_CPU_FREQUENCY 200
#define MIN(A,B)    (((A) < (B)) ? (A) : (B));

// Interrupt Service Routines predefinition
__interrupt void cpu_timer0_isr(void);
__interrupt void cpu_timer1_isr(void);
__interrupt void cpu_timer2_isr(void);
__interrupt void SWI1_HighestPriority(void);
__interrupt void SWI2_MiddlePriority(void);
__interrupt void SWI3_LowestPriority(void);
__interrupt void ADCC_ISR(void);
__interrupt void SPIB_isr(void);

void setF28027EPWM1A(float controleffort);
int16_t EPwm1A_F28027 = 1500;
void setF28027EPWM2A(float controleffort);
int16_t EPwm2A_F28027 = 1500;
//structure for pose and obstacle from F28
/*
total length is 2*2 + 2*1 + 22*1 = 28 16 bit chars
 */
typedef struct pose_obstacle{
    float x; //4
    float y;
    short destrow; //astar end point row
    short destcol; //astar end point col
    char mapCondensed[22];
} pose_obstacle;

//union of char and pose_obstacle for reading data
typedef union {
    char obs_data_char[28];  // char is 16bits on F28379D
    pose_obstacle cur_obs;
} int_pose_union;

/////////// A* INITS
extern char path_received[81];
extern int16_t newAstarPath;
int16_t robotdestSize = 39;
int16_t numpts = 0;
int16_t pathRow[50];  // made 50 long but only needs to be 40.
int16_t pathCol[50];
int16_t StartAstar = 0;
int16_t AstarDelay = 0;
int16_t AstarRunning = 1;  // Initially 1 so the robot does not start until the first Astar command has run
int_pose_union SendAStarInfo;
char SendAStarRawData[36];
uint32_t AstarendEqualsStart = 0;
uint32_t AstaroutsideMap = 0;
uint32_t AstarstartstopObstacle = 0;
uint32_t AstarResetMap = 0;
// For A* Default map with no obstacles just door opening
char map[176] =      //16x11 DO NOT MODIFY!!!!!!!!!!!!!!!!!!!
{   '0', '0', '0', '0', '0', '0', '0', '0', '0', '0', '0',
    '0', '0', '0', '0', '0', '0', '0', '0', '0', '0', '0',
    '0', '0', '0', '0', '0', '0', '0', '0', '0', '0', '0',
    '0', '0', '0', '0', '0', '0', '0', '0', '0', '0', '0',
    '0', '0', '0', '0', '0', '0', '0', '0', '0', '0', '0',
    '0', '0', '0', '0', '0', '0', '0', '0', '0', '0', '0',
    '0', '0', '0', '0', '0', '0', '0', '0', '0', '0', '0',
    '0', '0', '0', '0', '0', '0', '0', '0', '0', '0', '0',
    '0', '0', '0', '0', '0', '0', '0', '0', '0', '0', '0',
    '0', '0', '0', '0', '0', '0', '0', '0', '0', '0', '0',
    '0', '0', '0', '0', '0', '0', '0', '0', '0', '0', '0',
    'x', 'x', 'x', 'x', '0', '0', '0', 'x', 'x', 'x', 'x',
    '0', '0', '0', '0', '0', '0', '0', '0', '0', '0', '0',
    '0', '0', '0', '0', '0', '0', '0', '0', '0', '0', '0',
    '0', '0', '0', '0', '0', '0', '0', '0', '0', '0', '0',
    '0', '0', '0', '0', '0', '0', '0', '0', '0', '0', '0'   };

char mapstart[176] =      //16x11   DO NOT MODIFY!!!!!!!!!!!!!
{   '0', '0', '0', '0', '0', '0', '0', '0', '0', '0', '0',
    '0', '0', '0', '0', '0', '0', '0', '0', '0', '0', '0',
    '0', '0', '0', '0', '0', '0', '0', '0', '0', '0', '0',
    '0', '0', '0', '0', '0', '0', '0', '0', '0', '0', '0',
    '0', '0', '0', '0', '0', '0', '0', '0', '0', '0', '0',
    '0', '0', '0', '0', '0', '0', '0', '0', '0', '0', '0',
    '0', '0', '0', '0', '0', '0', '0', '0', '0', '0', '0',
    '0', '0', '0', '0', '0', '0', '0', '0', '0', '0', '0',
    '0', '0', '0', '0', '0', '0', '0', '0', '0', '0', '0',
    '0', '0', '0', '0', '0', '0', '0', '0', '0', '0', '0',
    '0', '0', '0', '0', '0', '0', '0', '0', '0', '0', '0',
    'x', 'x', 'x', 'x', '0', '0', '0', 'x', 'x', 'x', 'x',
    '0', '0', '0', '0', '0', '0', '0', '0', '0', '0', '0',
    '0', '0', '0', '0', '0', '0', '0', '0', '0', '0', '0',
    '0', '0', '0', '0', '0', '0', '0', '0', '0', '0', '0',
    '0', '0', '0', '0', '0', '0', '0', '0', '0', '0', '0'   };

typedef struct obs_struct{
    int16_t tally; //4
    int16_t senttoLV;
} obs_struct;

//code that increases map tally is in SWI2
obs_struct maptally[176] =
{   {99,0}, {99,0}, {99,0}, {99,0}, {99,0}, {99,0}, {99,0}, {99,0}, {99,0}, {99,0}, {99,0}, //top row where obstacles aren't allowed so tally is 99 for those
    {0,0}, {0,0}, {0,0}, {0,0}, {0,0}, {0,0}, {0,0}, {0,0}, {0,0}, {0,0}, {0,0},
    {0,0}, {0,0}, {0,0}, {0,0}, {0,0}, {0,0}, {0,0}, {0,0}, {0,0}, {0,0}, {0,0},
    {0,0}, {0,0}, {0,0}, {0,0}, {0,0}, {0,0}, {0,0}, {0,0}, {0,0}, {0,0}, {0,0},
    {0,0}, {0,0}, {0,0}, {0,0}, {0,0}, {0,0}, {0,0}, {0,0}, {0,0}, {0,0}, {0,0}, //switch the rest of 0's with {0,0}
    {0,0}, {0,0}, {0,0}, {0,0}, {0,0}, {0,0}, {0,0}, {0,0}, {0,0}, {0,0}, {0,0},
    {0,0}, {0,0}, {0,0}, {0,0}, {0,0}, {0,0}, {0,0}, {0,0}, {0,0}, {0,0}, {0,0},
    {0,0}, {0,0}, {0,0}, {0,0}, {0,0}, {0,0}, {0,0}, {0,0}, {0,0}, {0,0}, {0,0},
    {0,0}, {0,0}, {0,0}, {0,0}, {0,0}, {0,0}, {0,0}, {0,0}, {0,0}, {0,0}, {0,0},
    {0,0}, {0,0}, {0,0}, {0,0}, {0,0}, {0,0}, {0,0}, {0,0}, {0,0}, {0,0}, {0,0},
    {0,0}, {0,0}, {0,0}, {0,0}, {0,0}, {0,0}, {0,0}, {0,0}, {0,0}, {0,0}, {0,0},
    {99,0}, {99,0}, {99,0}, {99,0}, {0,0}, {0,0}, {0,0}, {99,0}, {99,0}, {99,0}, {99,0}, //replace these x's with tally's at 99 bc they obstacles by defaults
    {99,0}, {99,0}, {99,0}, {99,0}, {99,0}, {99,0}, {99,0}, {99,0}, {99,0}, {99,0}, {99,0},
    {99,0}, {99,0}, {99,0}, {99,0}, {99,0}, {99,0}, {99,0}, {99,0}, {99,0}, {99,0}, {99,0},
    {99,0}, {99,0}, {99,0}, {99,0}, {99,0}, {99,0}, {99,0}, {99,0}, {99,0}, {99,0}, {99,0},
    {99,0}, {99,0}, {99,0}, {99,0}, {99,0}, {99,0}, {99,0}, {99,0}, {99,0}, {99,0}, {99,0}   };

uint32_t numTimer0calls = 0;
uint16_t UARTPrint = 0;

float printLV1 = 0;
float printLV2 = 0;

float printLinux1 = 0;
float printLinux2 = 0;

////////////// LADAR INITS
uint16_t LADARi = 0;
char G_command[] = "G04472503\n"; //command for getting distance -120 to 120 degree
uint16_t G_len = 11; //length of command
xy ladar_pts[228]; //xy data
float LADARrightfront = 0;
float LADARleftfront = 0;
float LADARfront = 0;
float LADARentireleft = 0;
float LADARentireright = 0;
float LADARtemp_x = 0;
float LADARtemp_y = 0;
extern datapts ladar_data[228];

///////////// NETWORK/CAM/LABVIEW INITS
extern uint16_t newLinuxCommands;
extern float LinuxCommands[CMDNUM_FROM_FLOATS];

extern uint16_t NewLVData;
extern float fromLVvalues[LVNUM_TOFROM_FLOATS];
extern LVSendFloats_t DataToLabView;
extern char LVsenddata[LVNUM_TOFROM_FLOATS*4+2];
extern uint16_t LADARpingpong;
extern uint16_t NewCAMDataThreshold1;  // Flag new data
extern float fromCAMvaluesThreshold1[CAMNUM_FROM_FLOATS];
extern uint16_t NewCAMDataThreshold2;  // Flag new data
extern float fromCAMvaluesThreshold2[CAMNUM_FROM_FLOATS];

float MaxAreaThreshold1 = 0;
float MaxColThreshold1 = 0;
float MaxRowThreshold1 = 0;
float NextLargestAreaThreshold1 = 0;
float NextLargestColThreshold1 = 0;
float NextLargestRowThreshold1 = 0;
float NextNextLargestAreaThreshold1 = 0;
float NextNextLargestColThreshold1 = 0;
float NextNextLargestRowThreshold1 = 0;

float MaxAreaThreshold2 = 0;
float MaxColThreshold2 = 0;
float MaxRowThreshold2 = 0;
float NextLargestAreaThreshold2 = 0;
float NextLargestColThreshold2 = 0;
float NextLargestRowThreshold2 = 0;
float NextNextLargestAreaThreshold2 = 0;
float NextNextLargestColThreshold2 = 0;
float NextNextLargestRowThreshold2 = 0;

uint32_t numThres1 = 0;
uint32_t numThres2 = 0;

pose ROBOTps = {0,0,0}; //robot position
pose LADARps = {3.5/12.0,0,1};  // 3.5/12 for front mounting, theta is not used in this current code
float LADARxoffset = 0;
float LADARyoffset = 0;
float ballposx = 0.0; // for labview RG
float ballposy = 0.0;

uint32_t timecount = 0;
int16_t RobotState = 1;
int16_t checkfronttally = 0;
int32_t WallFollowtime = 0;

///////////// PATH FINDING INITS
#define NUMWAYPOINTS 8
uint16_t statePos = 0;
pose robotdest[40];  // array of waypoints for the robot
pose waypoints[NUMWAYPOINTS];  // array of waypoints for the robot
int16_t wayindex = 0;
uint16_t i = 0;//for loop

//////////// BUG ALGORITHM INITS
float tempcos = 0;
float tempsin = 0;
float XinRobot = 0;
float YinRobot = 0;

//tempcos = cosf(ROBOTps.theta);
//tempsin = sinf(ROBOTps.theta);
//XinRobot = robotdest[statePos].x*tempcos + robotdest[statePos].y*tempsin - ROBOTps.x*tempcos - ROBOTps.y*tempsin;
//YinRobot = -robotdest[statePos].x*tempsin + robotdest[statePos].y*tempcos + ROBOTps.x*tempsin - ROBOTps.y*tempcos

///////////// PI CONTROL INITS
uint16_t right_wall_follow_state = 2;  // right follow
uint16_t left_wall_follow_state = 2; //left wall follow state DRTK
float Kp_front_wall = -2.0;
float front_turn_velocity = 0.2;
float left_turn_Stop_threshold = 3.5;
float Kp_right_wall = -4.0;
float Kp_left_wall = 4.0;
float ref_right_wall = 1.5;
float foward_velocity = 1.0;
float left_turn_Start_threshold = 1.3;
float turn_saturation = 2.5;


///////////////// KALMANN INITS
float x_pred[3][1] = {{0},{0},{0}};                 // predicted state

//more kalman vars
float B[3][2] = {{1,0},{1,0},{0,1}};            // control input model
float u[2][1] = {{0},{0}};          // control input in terms of velocity and angular velocity
float Bu[3][1] = {{0},{0},{0}}; // matrix multiplication of B and u
float z[3][1];                          // state measurement
float eye3[3][3] = {{1,0,0},{0,1,0},{0,0,1}};   // 3x3 identity matrix
float K[3][3] = {{1,0,0},{0,1,0},{0,0,1}};      // optimal Kalman gain
#define ProcUncert 0.0001
#define CovScalar 10
float Q[3][3] = {{ProcUncert,0,ProcUncert/CovScalar},
                 {0,ProcUncert,ProcUncert/CovScalar},
                 {ProcUncert/CovScalar,ProcUncert/CovScalar,ProcUncert}};   // process noise (covariance of encoders and gyro)
#define MeasUncert 1
float R[3][3] = {{MeasUncert,0,MeasUncert/CovScalar},
                 {0,MeasUncert,MeasUncert/CovScalar},
                 {MeasUncert/CovScalar,MeasUncert/CovScalar,MeasUncert}};   // measurement noise (covariance of OptiTrack Motion Capture measurement)
float S[3][3] = {{1,0,0},{0,1,0},{0,0,1}};  // innovation covariance
float S_inv[3][3] = {{1,0,0},{0,1,0},{0,0,1}};  // innovation covariance matrix inverse
float P_pred[3][3] = {{1,0,0},{0,1,0},{0,0,1}}; // predicted covariance (measure of uncertainty for current position)
float temp_3x3[3][3];               // intermediate storage
float temp_3x1[3][1];               // intermediate storage
float ytilde[3][1];                 // difference between predictions

///////////////// OPTITRACK INITS
int32_t OptiNumUpdatesProcessed = 0;
pose OPTITRACKps;
extern uint16_t new_optitrack;
extern float Optitrackdata[OPTITRACKDATASIZE];
int16_t newOPTITRACKpose=0;

int16_t adcc2result = 0;
int16_t adcc3result = 0;
int16_t adcc4result = 0;
int16_t adcc5result = 0;
float adcC2Volt = 0.0;
float adcC3Volt = 0.0;
float adcC4Volt = 0.0;
float adcC5Volt = 0.0;
int32_t numADCCcalls = 0;
float LeftWheel = 0;
float RightWheel = 0;
float LeftWheel_1 = 0;
float RightWheel_1 = 0;
float LeftVel = 0;
float RightVel = 0;
float uLeft = 0;
float uRight = 0;
float HandValue = 0;
float vref = 0;
float turn = 0;
float gyro9250_drift = 0;
float gyro9250_angle = 0;
float old_gyro9250 = 0;
float gyroLPR510_angle = 0;
float gyroLPR510_offset = 0;
float gyroLPR510_drift = 0;
float old_gyroLPR510 = 0;
float gyro9250_radians = 0;
float gyroLPR510_radians = 0;

int16_t readdata[25];
int16_t IMU_data[9];

float accelx = 0;
float accely = 0;
float accelz = 0;
float gyrox = 0;
float gyroy = 0;
float gyroz = 0;

// Needed global Variables
float accelx_offset = 0;
float accely_offset = 0;
float accelz_offset = 0;
float gyrox_offset = 0;
float gyroy_offset = 0;
float gyroz_offset = 0;
int16_t calibration_state = 0;
int32_t calibration_count = 0;
int16_t doneCal = 0;

//variables for exercise 4 DR
float blobDist1 = 0.0;
float blobDist2 = 0.0;

//variables for exercise 5 DR
float kpvision = -0.05; //initially 0.05
float colcentroid = 0.0;
uint16_t state1Count = 1;
uint16_t state5Count = 0;
uint16_t state6Count = 0;
uint16_t state10Count = 0;
uint16_t state20Count = 1;
uint16_t state22Count = 1;
uint16_t state24Count = 1;
uint16_t state26Count = 1;
uint16_t state30Count = 1;
uint16_t state32Count = 1;
uint16_t state34Count = 1;
uint16_t state36Count = 1;
float testAngle = 90.0;

#define MPU9250 1
#define DAN28027 2
int16_t CurrentChip = MPU9250;
int16_t DAN28027Garbage = 0;
int16_t dan28027adc1 = 0;
int16_t dan28027adc2 = 0;
uint16_t MPU9250ignoreCNT = 0;  //This is ignoring the first few interrupts if ADCC_ISR and start sending to IMU after these first few interrupts.
uint16_t golfballcount = 0; //RG
float ballcolor = 2; // RG

void main(void)
{
    // PLL, WatchDog, enable Peripheral Clocks
    // This example function is found in the F2837xD_SysCtrl.c file.
    InitSysCtrl();

    InitGpio();

    InitSE423DefaultGPIO();

    //Scope for Timing
    GPIO_SetupPinMux(11, GPIO_MUX_CPU1, 0);
    GPIO_SetupPinOptions(11, GPIO_OUTPUT, GPIO_PUSHPULL);
    GpioDataRegs.GPACLEAR.bit.GPIO11 = 1;

    GPIO_SetupPinMux(32, GPIO_MUX_CPU1, 0);
    GPIO_SetupPinOptions(32, GPIO_OUTPUT, GPIO_PUSHPULL);
    GpioDataRegs.GPBCLEAR.bit.GPIO32 = 1;

    GPIO_SetupPinMux(52, GPIO_MUX_CPU1, 0);
    GPIO_SetupPinOptions(52, GPIO_OUTPUT, GPIO_PUSHPULL);
    GpioDataRegs.GPBCLEAR.bit.GPIO52 = 1;

    GPIO_SetupPinMux(60, GPIO_MUX_CPU1, 0);
    GPIO_SetupPinOptions(60, GPIO_OUTPUT, GPIO_PUSHPULL);
    GpioDataRegs.GPBCLEAR.bit.GPIO60 = 1;

    GPIO_SetupPinMux(61, GPIO_MUX_CPU1, 0);
    GPIO_SetupPinOptions(61, GPIO_OUTPUT, GPIO_PUSHPULL);
    GpioDataRegs.GPBCLEAR.bit.GPIO61 = 1;

    GPIO_SetupPinMux(67, GPIO_MUX_CPU1, 0);
    GPIO_SetupPinOptions(67, GPIO_OUTPUT, GPIO_PUSHPULL);
    GpioDataRegs.GPCCLEAR.bit.GPIO67 = 1;

    // Clear all interrupts and initialize PIE vector table:
    // Disable CPU interrupts
    DINT;

    // Initialize the PIE control registers to their default state.
    // The default state is all PIE interrupts disabled and flags
    // are cleared.
    // This function is found in the F2837xD_PieCtrl.c file.
    InitPieCtrl();

    // Disable CPU interrupts and clear all CPU interrupt flags:
    IER = 0x0000;
    IFR = 0x0000;

    // Initialize the PIE vector table with pointers to the shell Interrupt
    // Service Routines (ISR).
    // This will populate the entire table, even if the interrupt
    // is not used in this example.  This is useful for debug purposes.
    // The shell ISR routines are found in F2837xD_DefaultIsr.c.
    // This function is found in F2837xD_PieVect.c.
    InitPieVectTable();

    // Interrupts that are used in this example are re-mapped to
    // ISR functions found within this project
    EALLOW;  // This is needed to write to EALLOW protected registers
    PieVectTable.TIMER0_INT = &cpu_timer0_isr;
    PieVectTable.TIMER1_INT = &cpu_timer1_isr;
    PieVectTable.TIMER2_INT = &cpu_timer2_isr;
    PieVectTable.SCIA_RX_INT = &RXAINT_recv_ready;
    PieVectTable.SCIB_RX_INT = &RXBINT_recv_ready;
    PieVectTable.SCIC_RX_INT = &RXCINT_recv_ready;
    PieVectTable.SCID_RX_INT = &RXDINT_recv_ready;
    PieVectTable.SCIA_TX_INT = &TXAINT_data_sent;
    PieVectTable.SCIB_TX_INT = &TXBINT_data_sent;
    PieVectTable.SCIC_TX_INT = &TXCINT_data_sent;
    PieVectTable.SCID_TX_INT = &TXDINT_data_sent;
    PieVectTable.ADCC1_INT = &ADCC_ISR;
    PieVectTable.SPIB_RX_INT = &SPIB_isr;
    PieVectTable.EMIF_ERROR_INT = &SWI1_HighestPriority;  // Using Interrupt12 interrupts that are not used as SWIs
    PieVectTable.RAM_CORRECTABLE_ERROR_INT = &SWI2_MiddlePriority;
    PieVectTable.FLASH_CORRECTABLE_ERROR_INT = &SWI3_LowestPriority;
    EDIS;    // This is needed to disable write to EALLOW protected registers

    // Initialize the CpuTimers Device Peripheral. This function can be
    // found in F2837xD_CpuTimers.c
    InitCpuTimers();

    // Configure CPU-Timer 0, 1, and 2 to interrupt every second:
    // 200MHz CPU Freq,                       Period (in uSeconds)
    ConfigCpuTimer(&CpuTimer0, LAUNCHPAD_CPU_FREQUENCY, 10000);  // Currently not used for any purpose
    ConfigCpuTimer(&CpuTimer1, LAUNCHPAD_CPU_FREQUENCY, 100000); // !!!!! Important, Used to command LADAR every 100ms.  Do not Change.
    ConfigCpuTimer(&CpuTimer2, LAUNCHPAD_CPU_FREQUENCY, 40000); // Currently not used for any purpose

    // Enable CpuTimer Interrupt bit TIE
    CpuTimer0Regs.TCR.all = 0x4000;
    CpuTimer1Regs.TCR.all = 0x4000;
    CpuTimer2Regs.TCR.all = 0x4000;

    DELAY_US(1000000);  // Delay 1 second giving Lidar Time to power on after system power on

    init_serialSCIB(&SerialB,19200);
    init_serialSCIC(&SerialC,19200);

    for (LADARi = 0; LADARi < 228; LADARi++) {
        ladar_data[LADARi].angle = ((3*LADARi+44)*0.3515625-135)*0.01745329; //0.017453292519943 is pi/180, multiplication is faster; 0.3515625 is 360/1024
    }

    init_eQEPs();
    init_EPWM1and2();
    init_RCServoPWM_3AB_5AB_6A();
    init_ADCsAndDACs();
    setupSpib();

    EALLOW;
    EPwm4Regs.ETSEL.bit.SOCAEN = 0; // Disable SOC on A group
    EPwm4Regs.TBCTL.bit.CTRMODE = 3; // freeze counter
    EPwm4Regs.ETSEL.bit.SOCASEL = 2; // Select Event when counter equal to PRD
    EPwm4Regs.ETPS.bit.SOCAPRD = 1; // Generate pulse on 1st event
    EPwm4Regs.TBCTR = 0x0; // Clear counter
    EPwm4Regs.TBPHS.bit.TBPHS = 0x0000; // Phase is 0
    EPwm4Regs.TBCTL.bit.PHSEN = 0; // Disable phase loading
    EPwm4Regs.TBCTL.bit.CLKDIV = 0; // divide by 1  50Mhz Clock
    EPwm4Regs.TBPRD = 50000;  // Set Period to 1ms sample.  Input clock is 50MHz.
    // Notice here that we are not setting CMPA or CMPB because we are not using the PWM signal
    EPwm4Regs.ETSEL.bit.SOCAEN = 1; //enable SOCA
    //EPwm4Regs.TBCTL.bit.CTRMODE = 0; //unfreeze,  wait to do this right before enabling interrupts
    EDIS;

    // Enable CPU int1 which is connected to CPU-Timer 0, CPU int13
    // which is connected to CPU-Timer 1, and CPU int 14, which is connected
    // to CPU-Timer 2:  int 12 is for the SWI.
    IER |= M_INT1;
    IER |= M_INT6;
    IER |= M_INT8;  // SCIC SCID
    IER |= M_INT9;  // SCIA
    IER |= M_INT12;
    IER |= M_INT13;
    IER |= M_INT14;

    // Enable TINT0 in the PIE: Group 1 interrupt 7
    PieCtrlRegs.PIEIER1.bit.INTx7 = 1;
    PieCtrlRegs.PIEIER1.bit.INTx3 = 1;
    PieCtrlRegs.PIEIER6.bit.INTx3 = 1;
    PieCtrlRegs.PIEIER12.bit.INTx9 = 1; //SWI1
    PieCtrlRegs.PIEIER12.bit.INTx10 = 1; //SWI2
    PieCtrlRegs.PIEIER12.bit.INTx11 = 1; //SWI3  Lowest priority

    /////////////// SET COURSE WAYPOINTS
    waypoints[0].x = -5;    waypoints[0].y = -3;
    waypoints[1].x = 3;    waypoints[1].y = 7;
    waypoints[2].x = 5;    waypoints[2].y = 11;
    //middle of bottom
    waypoints[3].x = -3;     waypoints[3].y = 7;
    //outside the course
    waypoints[4].x = 5;     waypoints[4].y = -3;
    //back to middle
    waypoints[5].x = 0;     waypoints[5].y = 11;
    waypoints[6].x = -2;     waypoints[6].y = -4;
    waypoints[7].x = 2;     waypoints[7].y = -4;

    // ROBOTps will be updated by Optitrack during gyro calibration
    // TODO: specify the starting position of the robot
    ROBOTps.x = 0;          //the estimate in array form (useful for matrix operations)
    ROBOTps.y = 0;
    ROBOTps.theta = 0;  // was -PI: need to flip OT ground plane to fix this
    x_pred[0][0] = ROBOTps.x; //estimate in structure form (useful elsewhere)
    x_pred[1][0] = ROBOTps.y;
    x_pred[2][0] = ROBOTps.theta;

    AdccRegs.ADCINTFLGCLR.bit.ADCINT1 = 1;  //clear interrupt flag
    PieCtrlRegs.PIEACK.all = PIEACK_GROUP1;
    SpibRegs.SPIFFRX.bit.RXFFOVFCLR=1; // Clear Overflow flag
    SpibRegs.SPIFFRX.bit.RXFFINTCLR=1; // Clear Interrupt flag
    PieCtrlRegs.PIEACK.all = PIEACK_GROUP6;
    EPwm4Regs.TBCTL.bit.CTRMODE = 0; //unfreeze, and enter up count mode

    init_serialSCIA(&SerialA,115200);
    init_serialSCID(&SerialD,2083332);
    // Enable global Interrupts and higher priority real-time debug events
    EINT;  // Enable Global interrupt INTM
    ERTM;  // Enable Global realtime interrupt DBGM

    char S_command[19] = "S1152000124000\n";//this change the baud rate to 115200
    uint16_t S_len = 19;
    serial_sendSCIC(&SerialC, S_command, S_len);


    DELAY_US(1000000);  // Delay letting Lidar change its Baud rate
    init_serialSCIC(&SerialC,115200);


    // LED1 is GPIO22
    GpioDataRegs.GPACLEAR.bit.GPIO22 = 1;
    // LED2 is GPIO94
    GpioDataRegs.GPCCLEAR.bit.GPIO94 = 1;
    // LED3 is GPIO95
    GpioDataRegs.GPCCLEAR.bit.GPIO95 = 1;
    // LED4 is GPIO97
    GpioDataRegs.GPDCLEAR.bit.GPIO97 = 1;
    // LED5 is GPIO111
    GpioDataRegs.GPDCLEAR.bit.GPIO111 = 1;


    // IDLE loop. Just sit and loop forever (optional):
    while(1)
    {
        if (UARTPrint == 1 ) {


            if (readbuttons() == 0) {
                //UART_printfLine(1,"d1:%.2f d2:%.2f",blobDist1,blobDist2);
                UART_printfLine(1,"ST:%d AR:%d",RobotState, AstarRunning);
                //check threshold between blocks
                //UART_printfLine(1,"EL:%.2f F:%.2f",LADARentireleft, LADARfront);
                //UART_printfLine(2,"ER:%.2f", LADARentireright);
                //                UART_printfLine(1,"x:%.2f:y:%.2f:a%.2f",ROBOTps.x,ROBOTps.y,ROBOTps.theta);
                //UART_printfLine(2,"SP:%d", statePos);
            } else if (readbuttons() == 1) {
                UART_printfLine(1,"O1A:%.0fC:%.0fR:%.0f",MaxAreaThreshold1,MaxColThreshold1,MaxRowThreshold1);
                UART_printfLine(2,"P1A:%.0fC:%.0fR:%.0f",MaxAreaThreshold2,MaxColThreshold2,MaxRowThreshold2);
                //UART_printfLine(1,"LV1:%.3f LV2:%.3f",printLV1,printLV2);
                //UART_printfLine(2,"Ln1:%.3f Ln2:%.3f",printLinux1,printLinux2);
            } else if (readbuttons() == 2) {
                UART_printfLine(1,"O2A:%.0fC:%.0fR:%.0f",NextLargestAreaThreshold1,NextLargestColThreshold1,NextLargestRowThreshold1);
                UART_printfLine(2,"P2A:%.0fC:%.0fR:%.0f",NextLargestAreaThreshold2,NextLargestColThreshold2,NextLargestRowThreshold2);
                // UART_printfLine(1,"%.2f %.2f",adcC2Volt,adcC3Volt);
                // UART_printfLine(2,"%.2f %.2f",adcC4Volt,adcC5Volt);
            } else if (readbuttons() == 4) {
                UART_printfLine(1,"O3A:%.0fC:%.0fR:%.0f",NextNextLargestAreaThreshold1,NextNextLargestColThreshold1,NextNextLargestRowThreshold1);
                UART_printfLine(2,"P3A:%.0fC:%.0fR:%.0f",NextNextLargestAreaThreshold2,NextNextLargestColThreshold2,NextNextLargestRowThreshold2);
                // UART_printfLine(1,"L:%.3f R:%.3f",LeftVel,RightVel);
                // UART_printfLine(2,"uL:%.2f uR:%.2f",uLeft,uRight);
            } else if (readbuttons() == 8) {
                UART_printfLine(1,"020x%.2f y%.2f",ladar_pts[20].x,ladar_pts[20].y);
                UART_printfLine(2,"150x%.2f y%.2f",ladar_pts[150].x,ladar_pts[150].y);
            } else if (readbuttons() == 3) {
                UART_printfLine(1,"Vrf:%.2f trn:%.2f",vref,turn);
                UART_printfLine(2,"MPU:%.2f LPR:%.2f",gyro9250_radians,gyroLPR510_radians);
            } else if (readbuttons() == 5) {
                UART_printfLine(1,"Ox:%.2f:Oy:%.2f:Oa%.2f",OPTITRACKps.x,OPTITRACKps.y,OPTITRACKps.theta);
                UART_printfLine(2,"State:%d : %d",RobotState,statePos);
            }

            UARTPrint = 0;
        }
    }
}

__interrupt void SPIB_isr(void){

    uint16_t i;
    GpioDataRegs.GPBSET.bit.GPIO32 = 1;

    GpioDataRegs.GPCSET.bit.GPIO66 = 1;                 //Pull CS high as done R/W
    GpioDataRegs.GPASET.bit.GPIO29 = 1;  // Pull CS high for DAN28027

    if (CurrentChip == MPU9250) {

        for (i=0; i<8; i++) {
            readdata[i] = SpibRegs.SPIRXBUF; // readdata[0] is garbage
        }

        PostSWI1(); // Manually cause the interrupt for the SWI1

    } else if (CurrentChip == DAN28027) {

        DAN28027Garbage = SpibRegs.SPIRXBUF;
        dan28027adc1 = SpibRegs.SPIRXBUF;
        dan28027adc2 = SpibRegs.SPIRXBUF;
        CurrentChip = MPU9250;
        SpibRegs.SPIFFCT.bit.TXDLY = 0;
    }

    SpibRegs.SPIFFRX.bit.RXFFOVFCLR=1; // Clear Overflow flag
    SpibRegs.SPIFFRX.bit.RXFFINTCLR=1; // Clear Interrupt flag
    PieCtrlRegs.PIEACK.all = PIEACK_GROUP6;
    GpioDataRegs.GPBCLEAR.bit.GPIO32 = 1;
}


//adcd1 pie interrupt
__interrupt void ADCC_ISR (void)
{
    GpioDataRegs.GPASET.bit.GPIO11 = 1;
    adcc2result = AdccResultRegs.ADCRESULT0;
    adcc3result = AdccResultRegs.ADCRESULT1;
    adcc4result = AdccResultRegs.ADCRESULT2;
    adcc5result = AdccResultRegs.ADCRESULT3;

    // Here covert ADCIND0 to volts
    adcC2Volt = adcc2result*3.0/4095.0;
    adcC3Volt = adcc3result*3.0/4095.0;
    adcC4Volt = adcc4result*3.0/4095.0;
    adcC5Volt = adcc5result*3.0/4095.0;

    if (MPU9250ignoreCNT >= 1) {
        CurrentChip = MPU9250;
        SpibRegs.SPIFFCT.bit.TXDLY = 0;
        SpibRegs.SPIFFRX.bit.RXFFIL = 8;

        GpioDataRegs.GPCCLEAR.bit.GPIO66 = 1;

        SpibRegs.SPITXBUF = ((0x8000)|(0x3A00));
        SpibRegs.SPITXBUF = 0;
        SpibRegs.SPITXBUF = 0;
        SpibRegs.SPITXBUF = 0;
        SpibRegs.SPITXBUF = 0;
        SpibRegs.SPITXBUF = 0;
        SpibRegs.SPITXBUF = 0;
        SpibRegs.SPITXBUF = 0;
    } else {
        MPU9250ignoreCNT++;
    }

    numADCCcalls++;
    AdccRegs.ADCINTFLGCLR.bit.ADCINT1 = 1;  //clear interrupt flag
    PieCtrlRegs.PIEACK.all = PIEACK_GROUP1;
    GpioDataRegs.GPACLEAR.bit.GPIO11 = 1;

}

// cpu_timer0_isr - CPU Timer0 ISR
__interrupt void cpu_timer0_isr(void)
{
    CpuTimer0.InterruptCount++;

    numTimer0calls++;

    if ((numTimer0calls%5) == 0) {
        // Blink LaunchPad Red LED
        //GpioDataRegs.GPBTOGGLE.bit.GPIO34 = 1;
    }

    // Acknowledge this interrupt to receive more interrupts from group 1
    PieCtrlRegs.PIEACK.all = PIEACK_GROUP1;
}

// cpu_timer1_isr - CPU Timer1 ISR
__interrupt void cpu_timer1_isr(void)
{

    serial_sendSCIC(&SerialC, G_command, G_len);

    CpuTimer1.InterruptCount++;
}

// cpu_timer2_isr CPU Timer2 ISR
__interrupt void cpu_timer2_isr(void)
{
    // Blink LaunchPad Blue LED
    //GpioDataRegs.GPATOGGLE.bit.GPIO31 = 1;

    CpuTimer2.InterruptCount++;

    //  if ((CpuTimer2.InterruptCount % 10) == 0) {
    //      UARTPrint = 1;
    //  }
}

void setF28027EPWM1A(float controleffort){
    if (controleffort < -10) {
        controleffort = -10;
    }
    if (controleffort > 10) {
        controleffort = 10;
    }
    float value = (controleffort+10)*3000.0/20.0;
    EPwm1A_F28027 = (int16_t)value;  // Set global variable that is sent over SPI to F28027
}
void setF28027EPWM2A(float controleffort){
    if (controleffort < -10) {
        controleffort = -10;
    }
    if (controleffort > 10) {
        controleffort = 10;
    }
    float value = (controleffort+10)*3000.0/20.0;
    EPwm2A_F28027 = (int16_t)value;  // Set global variable that is sent over SPI to F28027
}

//
// Connected to PIEIER12_9 (use MINT12 and MG12_9 masks):
//
__interrupt void SWI1_HighestPriority(void)     // EMIF_ERROR
{
    GpioDataRegs.GPBSET.bit.GPIO61 = 1;
    // Set interrupt priority:
    volatile Uint16 TempPIEIER = PieCtrlRegs.PIEIER12.all;
    IER |= M_INT12;
    IER    &= MINT12;                          // Set "global" priority
    PieCtrlRegs.PIEIER12.all &= MG12_9;  // Set "group"  priority
    PieCtrlRegs.PIEACK.all = 0xFFFF;    // Enable PIE interrupts
    __asm("  NOP");
    EINT;

    //##############################################################################################################
    IMU_data[0] = readdata[1];
    IMU_data[1] = readdata[2];
    IMU_data[2] = readdata[3];
    IMU_data[3] = readdata[5];
    IMU_data[4] = readdata[6];
    IMU_data[5] = readdata[7];

    accelx = (((float)(IMU_data[0]))*4.0/32767.0);
    accely = (((float)(IMU_data[1]))*4.0/32767.0);
    accelz = (((float)(IMU_data[2]))*4.0/32767.0);
    gyrox  = (((float)(IMU_data[3]))*250.0/32767.0);
    gyroy  = (((float)(IMU_data[4]))*250.0/32767.0);
    gyroz  = (((float)(IMU_data[5]))*250.0/32767.0);

    if(calibration_state == 0){
        calibration_count++;
        if (calibration_count == 2000) {
            calibration_state = 1;
            calibration_count = 0;
        }
    } else if(calibration_state == 1){
        accelx_offset+=accelx;
        accely_offset+=accely;
        accelz_offset+=accelz;
        gyrox_offset+=gyrox;
        gyroy_offset+=gyroy;
        gyroz_offset+=gyroz;
        gyroLPR510_offset+=adcC5Volt;
        calibration_count++;
        if (calibration_count == 2000) {
            calibration_state = 2;
            accelx_offset/=2000.0;
            accely_offset/=2000.0;
            accelz_offset/=2000.0;
            gyrox_offset/=2000.0;
            gyroy_offset/=2000.0;
            gyroz_offset/=2000.0;
            gyroLPR510_offset/=2000.0;
            calibration_count = 0;
        }
    } else if(calibration_state == 2) {

        gyroLPR510_drift += (((adcC5Volt-gyroLPR510_offset) + old_gyroLPR510)*.0005)/(2000);
        old_gyroLPR510 = adcC5Volt-gyroLPR510_offset;

        gyro9250_drift += (((gyroz-gyroz_offset) + old_gyro9250)*.0005)/(2000);
        old_gyro9250 = gyroz-gyroz_offset;
        calibration_count++;

        if (calibration_count == 2000) {
            calibration_state = 3;
            calibration_count = 0;
            doneCal = 1;
            newAstarPath = 0;
            newOPTITRACKpose = 0;
            AstarDelay = 0;
        }
    } else if(calibration_state == 3){
        if (AstarDelay == 1000) {
            StartAstar = 1;  // First Astar to get first path.
            AstarDelay++;
        } else {
            AstarDelay++;
        }

        accelx -=(accelx_offset);
        accely -=(accely_offset);
        accelz -=(accelz_offset);
        gyrox -= gyrox_offset;
        gyroy -= gyroy_offset;
        gyroz -= gyroz_offset;
        LeftWheel = readEncLeft();
        RightWheel = readEncRight();
        HandValue = readEncWheel();

        gyro9250_angle = gyro9250_angle + (gyroz + old_gyro9250)*.0005 - gyro9250_drift;
        old_gyro9250 = gyroz;

        gyroLPR510_angle = gyroLPR510_angle + ((adcC5Volt-gyroLPR510_offset) + old_gyroLPR510)*.0005 - gyroLPR510_drift;
        old_gyroLPR510 = adcC5Volt-gyroLPR510_offset;

        gyro9250_radians = (gyro9250_angle * (PI/180.0));
        gyroLPR510_radians = gyroLPR510_angle * 400 * (PI/180.0);

        LeftVel = (1.235/12.0)*(LeftWheel - LeftWheel_1)*1000;
        RightVel = (1.235/12.0)*(RightWheel - RightWheel_1)*1000;

        if (newLinuxCommands == 1) {
            newLinuxCommands = 0;
            printLinux1 = LinuxCommands[0];
            printLinux2 = LinuxCommands[1];
            //?? = LinuxCommands[2];
            //?? = LinuxCommands[3];
            //?? = LinuxCommands[4];
            //?? = LinuxCommands[5];
            //?? = LinuxCommands[6];
            //?? = LinuxCommands[7];
            //?? = LinuxCommands[8];
            //?? = LinuxCommands[9];
            //?? = LinuxCommands[10];
        }

        if (NewCAMDataThreshold1 == 1) {
            NewCAMDataThreshold1 = 0;
            MaxAreaThreshold1 = fromCAMvaluesThreshold1[0];
            MaxColThreshold1 = fromCAMvaluesThreshold1[1];
            MaxRowThreshold1 = fromCAMvaluesThreshold1[2];

            NextLargestAreaThreshold1 = fromCAMvaluesThreshold1[3];
            NextLargestColThreshold1 = fromCAMvaluesThreshold1[4];
            NextLargestRowThreshold1 = fromCAMvaluesThreshold1[5];

            NextNextLargestAreaThreshold1 = fromCAMvaluesThreshold1[6];
            NextNextLargestColThreshold1 = fromCAMvaluesThreshold1[7];
            NextNextLargestRowThreshold1 = fromCAMvaluesThreshold1[8];
            numThres1++;
            if ((numThres1 % 5) == 0) {
                // LED4 is GPIO97
                GpioDataRegs.GPDTOGGLE.bit.GPIO97 = 1;
            }
        }

        if (NewCAMDataThreshold2 == 1) {
            NewCAMDataThreshold2 = 0;
            MaxAreaThreshold2 = fromCAMvaluesThreshold2[0];
            MaxColThreshold2 = fromCAMvaluesThreshold2[1];
            MaxRowThreshold2 = fromCAMvaluesThreshold2[2];

            NextLargestAreaThreshold2 = fromCAMvaluesThreshold2[3];
            NextLargestColThreshold2 = fromCAMvaluesThreshold2[4];
            NextLargestRowThreshold2 = fromCAMvaluesThreshold2[5];

            NextNextLargestAreaThreshold2 = fromCAMvaluesThreshold2[6];
            NextNextLargestColThreshold2 = fromCAMvaluesThreshold2[7];
            NextNextLargestRowThreshold2 = fromCAMvaluesThreshold2[8];
            numThres2++;
            if ((numThres2 % 5) == 0) {
                // LED5 is GPIO111
                GpioDataRegs.GPDTOGGLE.bit.GPIO111 = 1;
            }
        }

        if (NewLVData == 1) {
            NewLVData = 0;
            printLV1 = fromLVvalues[0];
            printLV2 = fromLVvalues[1];
            //?? = fromLVvalues[2];
            //?? = fromLVvalues[3];
            //?? = fromLVvalues[4];
            //?? = fromLVvalues[5];
            //?? = fromLVvalues[6];
            //?? = fromLVvalues[7];
        }

        if (new_optitrack == 1) {
            OPTITRACKps = UpdateOptitrackStates(ROBOTps, &newOPTITRACKpose);
            new_optitrack = 0;
        }

        //////////////////////////////// A* RECEIVE ////////////////////////////////////////////////
        if (newAstarPath == 1) {
            newAstarPath = 0;
            AstarRunning = 0;
            if (path_received[80] == 0) {
                // means no errors so setup robot to follow this new path???
                statePos = 1; //set to 1 to not go to the first point(which is the position the robot is at)
                uint16_t path_index = 0;
                //get the number of points in path
                for (path_index = 0; path_index < 40; path_index++){
                    if (path_received[path_index*2] > 100) {
                        robotdestSize = path_index;
                        break;
                    }
                }
                //update the robot dest
                numpts = MIN(robotdestSize,39); //get the max of path length and 40 (max path length)
                //get the pathRow and pathCol array and remember this is in reverse order
                for (path_index = 0; path_index < numpts; path_index++) {
                    pathRow[path_index] = (int16_t)path_received[path_index*2];
                    pathCol[path_index] = (int16_t)path_received[path_index*2+1];
                }
                for (int i = 0;i<numpts;i++) {
                    robotdest[i].x = pathCol[numpts-1-i] - 5;
                    robotdest[i].y = 11 - pathRow[numpts-1-i];
                    statePos = 1;
                }
            } else {
                if ((path_received[80]&0x2)==0x2) {
                    AstarendEqualsStart++;
                    // end equals start so no need for a new path What else to do here?????
                }
                if ((path_received[80]&0x4)==0x4) {
                    // start and or stop outside of map  ????
                    AstaroutsideMap++;
                }
                if ((path_received[80]&0x8)==0x8) {
                    // start or stop is an obstacle should also here bit 0 should be set to reset map
                    AstarstartstopObstacle++;
                }
                if ((path_received[80]&0x1)==0x1) {
                    AstarResetMap++;
                    // reset Map and start another Astar
                    for (i=0;i<176;i++) {
                        map[i] = mapstart[i];
                        if (maptally[i].tally != 99) {
                            maptally[i].tally = 0;
                        }
                    }
                    StartAstar = 1;
                }
            }
        }
        /////////////////////////////////////// END //////////////////////////////////////////////////

        /////////////////////////////////// KALMANN FILTER ////////////////////////////////////////////
        // Step 0: update B, u
        B[0][0] = cosf(ROBOTps.theta)*0.001;
        B[1][0] = sinf(ROBOTps.theta)*0.001;
        B[2][1] = 0.001;
        u[0][0] = 0.5*(LeftVel + RightVel);    // linear velocity of robot
        u[1][0] = gyroz*(PI/180.0);    // angular velocity in rad/s (negative for right hand angle)

        // Step 1: predict the state and estimate covariance
        Matrix3x2_Mult(B, u, Bu);                   // Bu = B*u
        Matrix3x1_Add(x_pred, Bu, x_pred, 1.0, 1.0); // x_pred = x_pred(old) + Bu
        Matrix3x3_Add(P_pred, Q, P_pred, 1.0, 1.0); // P_pred = P_pred(old) + Q
        // Step 2: if there is a new measurement, then update the state
        if (1 == newOPTITRACKpose) {
            OptiNumUpdatesProcessed++;  // checking how often OptiTrack is causing a Kalman update
            if ((OptiNumUpdatesProcessed%10)==0) {
                // LED 3
                GpioDataRegs.GPCTOGGLE.bit.GPIO95 = 1;
            }
            newOPTITRACKpose = 0;
            z[0][0] = OPTITRACKps.x;    // take in the Optitrack Motion Capture measurement
            z[1][0] = OPTITRACKps.y;
            // fix for OptiTrack problem at 180 degrees
            if (cosf(ROBOTps.theta) < -0.99) {
                z[2][0] = ROBOTps.theta;
            }
            else {
                z[2][0] = OPTITRACKps.theta;
            }
            // Step 2a: calculate the innovation/measurement residual, ytilde
            Matrix3x1_Add(z, x_pred, ytilde, 1.0, -1.0);    // ytilde = z-x_pred
            // Step 2b: calculate innovation covariance, S
            Matrix3x3_Add(P_pred, R, S, 1.0, 1.0);                          // S = P_pred + R
...

This file has been truncated, please download it to see its full contents.

SE423 Final Project

Things used in this project

Software apps and online services

Story

strategy

pictures/videos

team

Code

user_xy

AstarFinal_main.c

zipped code

zipped LabVIEW

Credits

Ramya Gandhi

Lorena

Tim Khuu

D Rod

Comments

Embed the widget on your own site

SE423 Final Project

SE423 Final Project

Things used in this project

Software apps and online services

Story

strategy

pictures/videos

team

Code

user_xy

AstarFinal_main.c

zipped code

zipped LabVIEW

Credits

Ramya Gandhi

Lorena

Tim Khuu

D Rod

Comments

Related tags
